Harmonic Filter Resistors Manufacturer for Power Quality Systems

Current flows through drives, rectifiers, and furnaces in the form of short bursts. In turn, this results in the creation of harmonics, which cause overheating in cables, cause breakers to trip, and decrease the lifespan of motors and transformers. Such harmonics are eliminated by using passive filters which are based on capacitors and reactors. However, the stability of the filter depends on that of the controlling resistor. This is why we have our range, and the information you must provide us with.


Our Harmonic Filter Resistor Range

Filter resistors have three roles; hence we have three families.

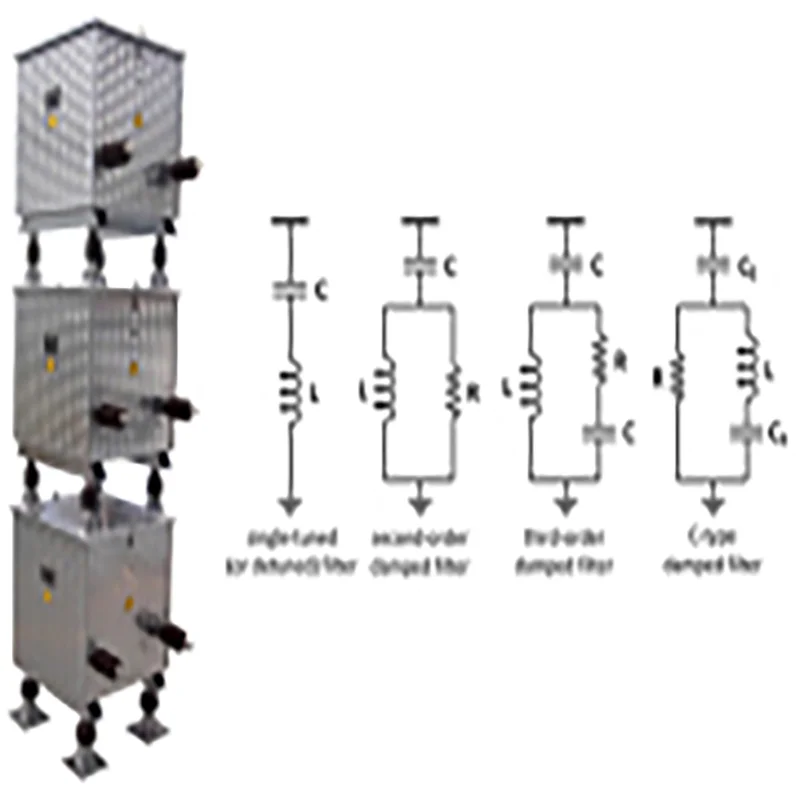

  • Damping. The purpose of a damping resistor is to attenuate the resonance peak by being connected in parallel or in series with the reactor. Otherwise, the filter may actually amplify those harmonics it is supposed to suppress, particularly under changing grids. The selection of our damping resistors is based on the quality factor of the filter.
  • Discharge. When disconnected from the power source, capacitors retain their voltage for some time. A discharge resistor helps to drop the voltage within the period specified by the standards, thus protecting maintenance personnel.
  • Tuning. By tuning a filter resistor, we can determine the selectivity or bandwidth of the filtering process.

All harmonic filter resistors manufactured by us have stainless steel or nichrome resistive elements, ceramic insulation, and a ventilation enclosure. A reputable manufacturer of harmonic filter resistors will always clearly specify the material and capacity of the element.


Technical Specifications

Five characteristics determine the resistor of your choice, so keep this table at hand when placing an inquiry.

Parameter What it tells you
Resistance The ohmic value, usually with a stated tolerance
Power Continuous watts, including heating from harmonic current
Harmonic current The RMS current across all harmonic orders, not only the fundamental
Voltage The system voltage and insulation level of the filter
Enclosure Indoor or outdoor use, with a suitable IP rating

This is where most errors occur: the harmonic current row. The power dissipation depends on the square of the RMS value, therefore, a resistor calculated solely for the fundamental will be overheating and aging fast. All harmonic filter resistors are calculated over the entire range of harmonics and have some safety margin included. A harmonic filter resistors manufacturer asking for your harmonic study makes everything correctly.


Key Features and Benefits

A good resistor is always silent, but protects the whole harmonic filter. This is what we care about:

  • Stable behaviour of the filter due to maintained resonance stability
  • Safety margin accounted for the thermal stress due to harmonic currents
  • Low-inductance winding variants to minimise the impact on the tuning of the filter
  • Robust design with elements replaceable in case of failure
  • Thermal switches or sensors for early warning

The result is a harmonic filter capable of operating for many years without any surprises. An experienced harmonic filter resistors manufacturer knows how to design a resistor taking into account its role in the filter behaviour, and a damping resistor manufactured correctly will keep your system steady in different conditions.


Applications

VFD plants. Harmonics are generated by pumps, fans, and conveyors driven by motors. The resistor in the filter circuit makes sure that supply quality remains within utility levels and does not cause tripping.

Rectifiers. The load on the power source by electrolysis, charging, and DC systems generates six pulse and twelve pulse harmonics. A damping resistor prevents any resonance of the grid.

Arc furnaces. Current drawn by arc furnaces is very harmonic, so the resistors are subjected to severe operating conditions. Discuss overload capabilities and cooling requirements with your harmonic filter resistors supplier.

HVDC. Filter circuits in converter stations require many harmonic filter resistors at high voltages.


Customisation Options

Since each filter has its unique network, we can customise the resistor accordingly. Options include:

  • Resistive values and wattages, ranging from individual resistors to banks of resistors
  • Construction type: wire wound, edge wound, or stainless steel grid design
  • Low inductance or non-inductive windings
  • Enclosures suitable for indoor or outdoor use with a selected IP rating
  • Types of terminal connections, temperature sensors, and mounting methods

We are a harmonic filter resistors manufacturer; hence our ability to customise the resistors to fit your reactor and capacitor information. A customised damping resistor for a unique filter requires your circuit specifications only.


Quality and Testing

Before shipment of any unit, tests are performed. We perform tests on resistance and insulation resistance, and we use a dielectric withstand test on the terminals and enclosure. A heat test assures us that the temperature rise remains below the design value under full rated load, and we verify operation of the thermal protection at its set value. Each harmonic filter resistor complies with all relevant IEC standards and national standards, and a record of every order is maintained. A good harmonic filter resistors manufacturer allows customer witnessing of testing, and a damping resistor for an important installation may be examined at our factory.


Why Choose Us

Fabrication, design, wiring, and testing occur in one place, ensuring consistency in quality and delivery dates. As a harmonic filter resistors manufacturer, we offer unbiased suggestions, even if a smaller unit is suitable. Selecting the right harmonic filter resistors manufacturer eliminates surprises during commissioning and helps you after sales with spares and assistance. We will send you a practical quotation for your harmonic filter resistor after receiving your filter details and harmonic study.


Frequently Asked Questions

1. Why does my filter overheat even when harmonic levels look normal?

Resistors heat from RMS current across all harmonic orders, and resonance can hide overload. Ask your harmonic filter resistors manufacturer to recheck the rating against a full harmonic study.

2. How do I size a damping resistor?

Start with the filter’s reactance, quality factor, and harmonic current spectrum. Share these with a harmonic filter resistors manufacturer, who will calculate the resistance and power.

3. How is the resistor protected against overload?

Thermal switches or sensors raise an alarm or trip before limits are crossed, and the rating includes a margin. A harmonic filter resistors manufacturer can also advise on fuses.

4. Can it be installed outdoors?

Yes, with a weatherproof enclosure of suitable IP rating and protected terminals. Tell your harmonic filter resistors manufacturer about dust, rain, and temperature.

5. What data do you need for a custom filter resistor?

Please share resistance, power, harmonic current, voltage, enclosure type, and your filter schematic. A harmonic filter resistors manufacturer can then quote quickly.
